6S Li-ion Drone Battery
video
6S Li-ion Drone Battery

6S Li-ion Drone Battery

Material: Lithium Cobalt Oxides
Model: JCP-32A023D-EHV
Capacity: 32000mAh
Cycle Life: ≥500 Time

Huizhou Jack Power Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of 6s li-ion drone battery in China. Welcome to wholesale bulk 6s li-ion drone battery from our factory. We also accept customized orders.





China Drone Battery Manufacturer – OEM 32Ah 23.4V Lithium-ion Drone Battery

6S Li-ion Drone Battery





This drone battery is a high-capacity lithium-ion battery pack designed for commercial, industrial, and custom drone applications. Model number JCP-32A023D-EHV, it uses LiCoO₂ (lithium cobalt oxide) cells and has a rated capacity of 32,000mAh. The battery has a nominal voltage of 23.4V, an energy density of up to 246Wh/kg, and a continuous discharge rate of 3C–10C, and can be configured to meet different drone power requirements. OEM/ODM customization is supported, including capacity, voltage, connectors, wiring harnesses, battery management system (BMS), casing, and labels.

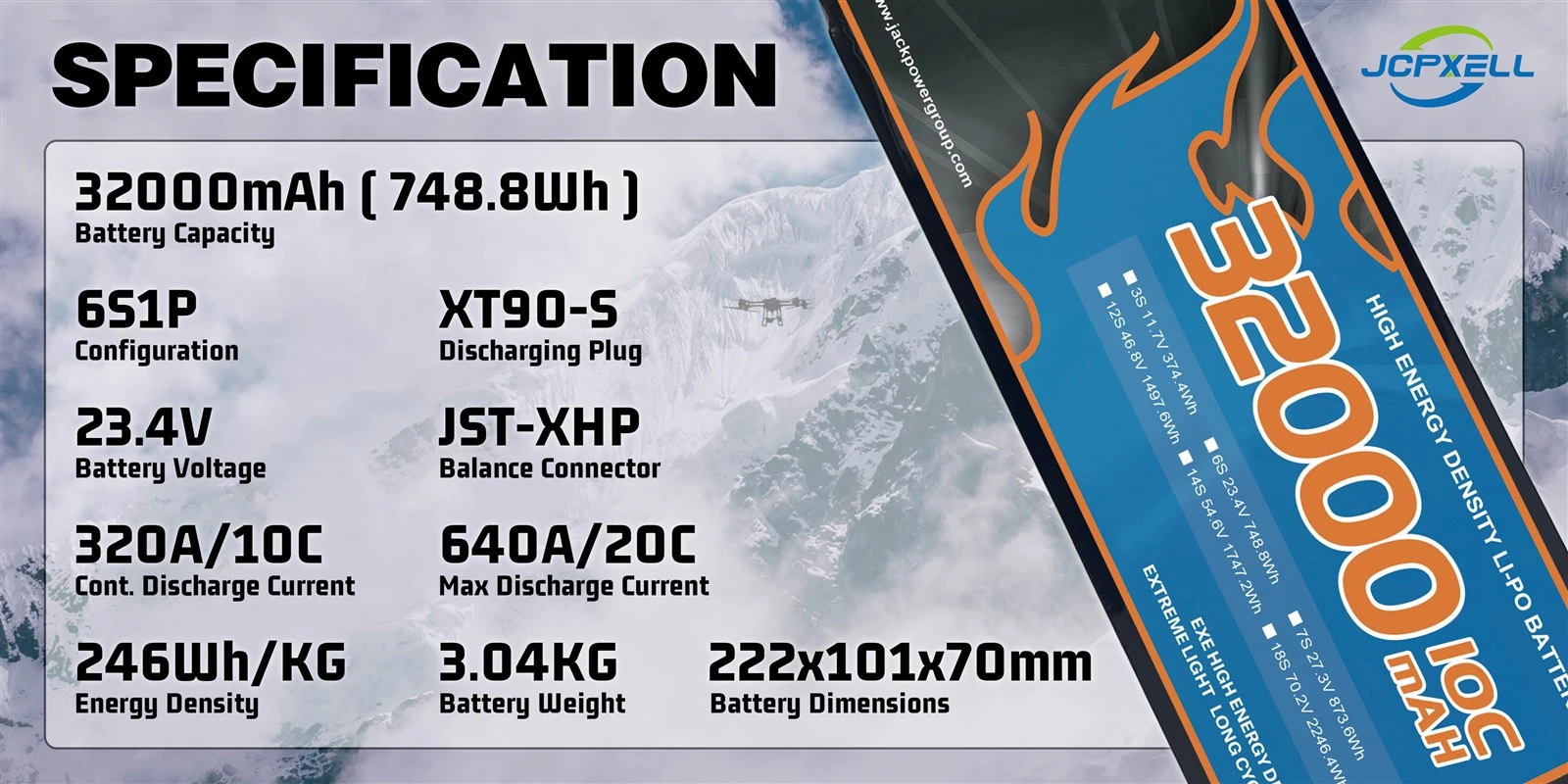

Product Specifications



Item

Specification

Model

JCP-32A023D-EHV

Battery Type

6S Li-ion Battery

Battery Chemistry

Lithium Cobalt Oxide (LiCoO₂)

Rated Capacity

32,000mAh

Nominal Voltage

23.4V

Voltage Customization

Available

Energy Density

Up to 246Wh/kg

Cycle Life

≥500 cycles at 80% DOD

Continuous Discharge Rate

3C–10C, customizable

Peak Discharge

10C–20C instantaneous

Discharge Temperature

-20°C to 60°C

Housing Options

Flame-retardant PC+ABS / Carbon Fiber Composite

OEM/ODM

Supported



Get A Quote/Sample



product-3600-1800

product-3600-1800





OEM/ODM Customization



Custom Option

Application

Capacity

Match flight-time and power requirements

Voltage

Adapt to the UAV power system

Discharge Rate

Match motor and ESC requirements

Connector

Match the aircraft power interface

Wiring Harness

Match installation requirements

BMS

Configure battery management functions

Housing

Adapt to battery compartment

Label

Private-label branding

Appearance

Match OEM product design





Application Scenarios

Aerial Photography Drones: Provides stable power for aerial photography and film production drones.



Industrial Drones: Used for surveying, agricultural spraying, inspection, and monitoring tasks.



Racing Drones: Meets the high discharge requirements of FPV racing drones.



Scientific and Educational Drones: Provides power for experimental, teaching, and scientific research drones.



Customized Drone Projects: Meets specific customer requirements for voltage, capacity, and interface customization.



product-3600-1800

product-3600-1800



FAQ

Q: What is the capacity of this 6S lithium-ion drone battery?

A: Rated capacity is 32,000mAh.

Q: What is the continuous discharge rate of the drone battery?

A: The continuous discharge rate can be configured according to the drone application, ranging from 3C to 10C.

Q: Can the drone battery be customized?

A: Yes. JACK POWER supports customization of battery capacity, voltage, connectors, wiring harnesses, battery management system (BMS), casing, and tags.

Q: Can the battery casing be customized?

A: Yes. We offer PC+ABS and carbon fiber composite casing options depending on project requirements.

Q: Who is this 6S lithium-ion drone battery suitable for?

A: It is suitable for drone manufacturers, drone integrators, agricultural drone companies, industrial drone operators, surveying companies, and OEM/ODM buyers.

Q: Can JACK POWER develop batteries for new drone projects?

A: Yes. Buyers can provide information such as the drone's voltage, capacity, maximum current, size, connectors, flight requirements, and application environment for us to conduct a custom battery evaluation.



product-2560-1440
